Features

◎ Supports 10Gb/s serial optical interface

◎ Up to 300m transmission on OM3 MMF

◎ 850nm VCSEL laser and PIN receiver

◎ Hot-pluggable SFP+ footprint

◎ SFI high speed electrical interface

◎ Built-in digital diagnostic functions

◎ Single +3.3V power supply

◎ Power consumption less than 0.75 W

◎ Operating case temperature: -40~+85°C

◎ SFP+ MSA package with duplex LC connector

Applications

◎ 10GBASE-SR/SW 10G Ethernet

◎ Other optical links

Standard

◎ Compliant with SFF-8472 and SFP+ MSA

◎ Compliant to SFF-8431 and SFF-8432

◎ Compliant with IEEE 802.3ae 10GBASE-SR/SW

◎ RoHS Compliant

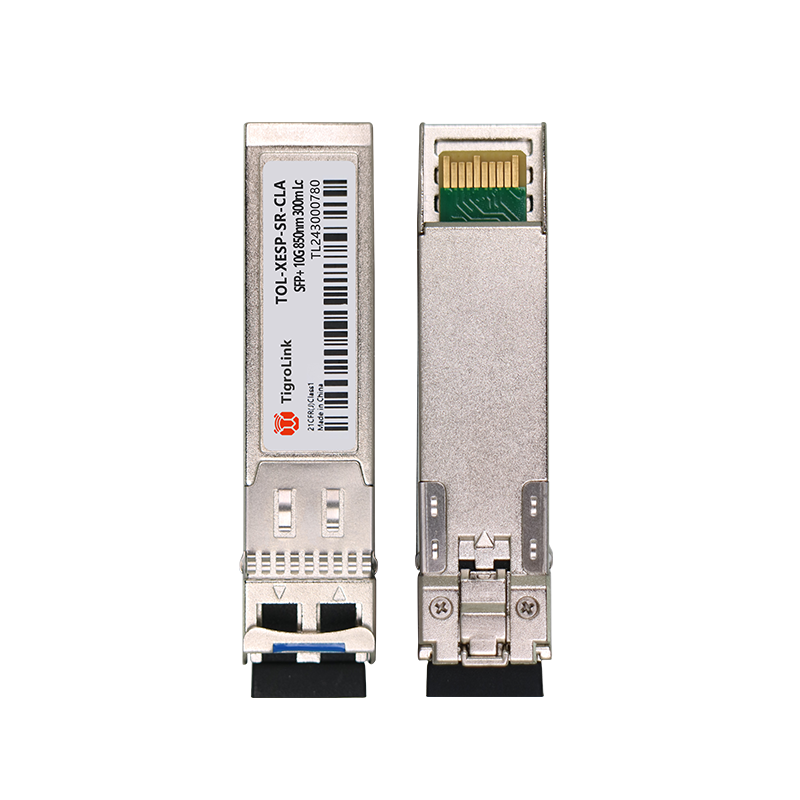

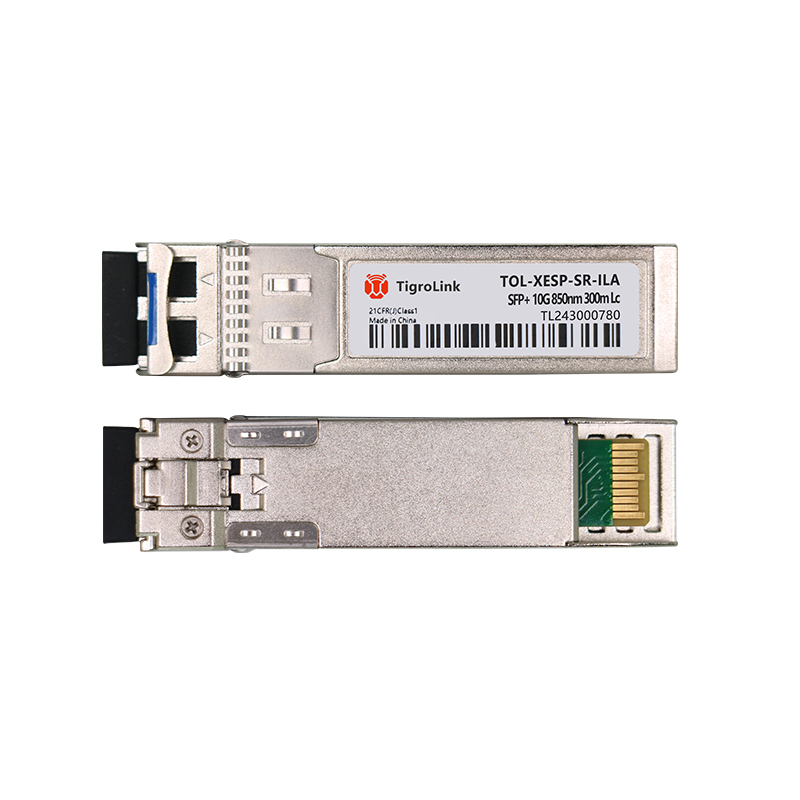

Product Description

The SFP+ transceivers are high-performance, cost-effective modules supporting data rate of 10Gbps and 300m transmission distance with OM3 MMF.

The transceiver consists of three sections: an Un-cooled 850nm VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
