Features

◎    Support 10/100/1000/10G Base-T Operation

◎    Up to 30m transmission via Cat 6A cable

◎    XFI/5GBASE-R/2500BASE-X/SGMII, SGMII Auto-Negotiation on

◎   Standard SFP+ form factor & 3.3 single power supply

◎   Compact RJ-45 connector assembly

◎   Physical layer IC accessed via I2C

◎   Compliant to the SFF-8432 Common Management Interface MSA

◎   Tx Disable and Rx Los Function

◎   Fully Metallic Enclosure for Low EMI Emissions

◎   Operation Case Temperature range 0~70°

Applications

◎ 10 Gigabit Ethernet over Cat 6A cable

◎ 5 Gigabit Ethernet over Cat 6A cable

◎ 2.5 Gigabit Ethernet over Cat 6A cable

◎ 1.25 Gigabit Ethernet over Cat 5e cable

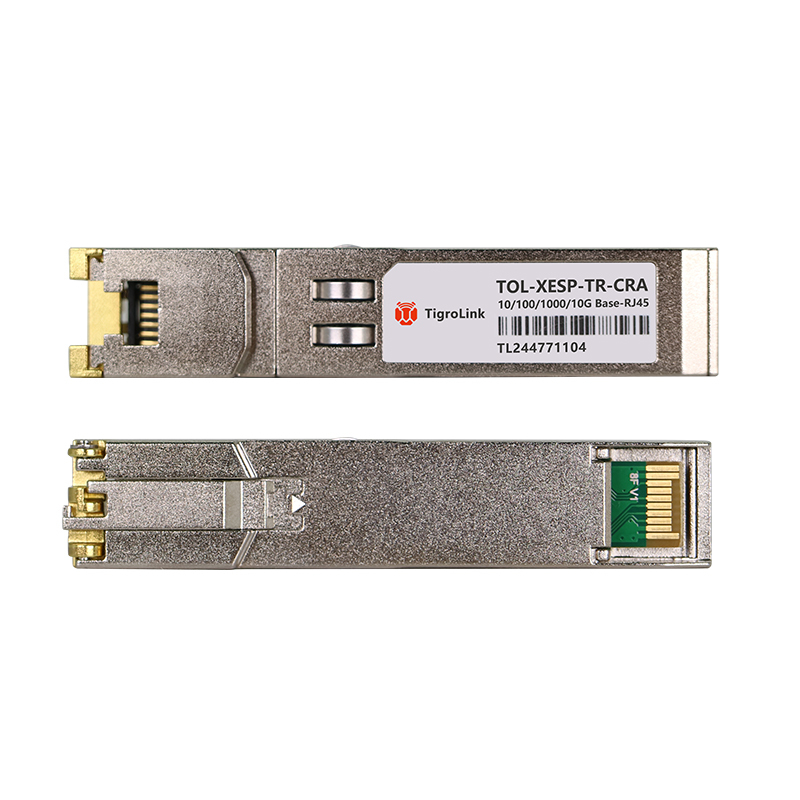

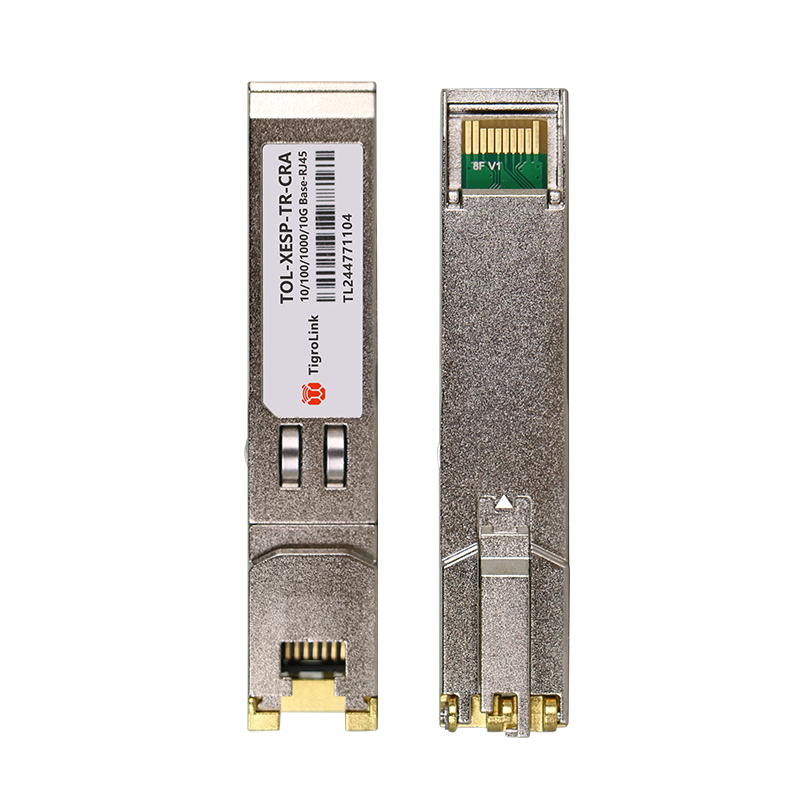

Product Description

The 10G SFP+ Copper transceivers are high-performance, cost-effective modules supporting 10/100/1000/10G Base-T operation as specified in IEEE 802. 3-2015 and IEEE 802.3an.For 10Gbps data-rate, it supports 30 meters reach over shielded twisted-pair category 6A cable. The module supports 10Gbps full duplex data-links with 16-level Pulse Amplitude Modulation (PAM) signals. The module provides standard serial ID information compliant with SFP+ MSA, which can be accessed with address of A0h via the 2wire serial bus. The physical IC can also be accessed via 2wire serial bus at address ACh.
